Hydraulic CNC Tube Bender, Trolley Automatic Tube Bender, Suitable for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)

Technical Parameter and Configuration for Automatic Pipe Bending Machine                                            GM-SB-114NCB Machine CharacteristicFull hydraulic drove, PLC controlled with touch screen or text&n

Featured Products

Technical Parameter and Configuration for Automatic Pipe Bending Machine                                            GM-SB-114NCB
  • Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

  • Main Technical Parameter

NameUnit Parameter
Mild steel round tube  mm114*10
Stainless Steelmm114*6
Light alloy annealed round tubemm114*12
Mild steel square tubemm90*90*8
Mild steel rectangular tube mm100*50*3
Mild steel round solid barmm60
Mild steel square solid barmm55*55
Min. bending radiusmm40
Max. Bending radius(Standard)mm450
Head overhang (on bending centre)mm500
Head height (on bending centre)mm720
Bending centre height (from floor)   mm1235
Max. Bending Angle°190°
Through Effective Distancemm4200
Bending Speed(Max.)°/sec20
Bending angle Precision°±0.10
System Motor PowerKW15
Hydraulic Pump VolumeL45
Max. PressureMpa16
L*W*H (Packaging Dimension)mm5200*1350*1250
Machine WeightT5.2

  • Configuration of Hydraulic and Electronic Control System

NameManufacturer
Hydraulic MotorGermany Siemens(Beide)/Suzhou Jialifan
Hydraulic PumpYUCI Yuken/Wuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardTaiwan Shanghong (Imported)
CylinderShanghai Qifan
Oil tubeSuzhou Kejia
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerTaiwan Mingwei
ContactorGerman SCHNEIDER(Imported)
Other Electric PartsGerman SCHNEIDER,Omron, Taiwan SHILIN(Imported)

Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)

Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)
Hydraulic CNC Tube Bender, Wheel Barrow Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (GM-114NCB)

FAQ:

1. Q: Are you  manufacturer or trading company?
    A: we are manufacturer,established over 20 years. We are focusing on pipe/tube/solid bar bending machines.

2. Q:Where is the nearest airport to your company?
    A: Wuxi Airport or Shanghai Airport.

3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
         - Pipe Outdiameter Range
         - Wall thickness range
         - Bending Radius(Centerline radius)
         - The pipe material
         - how many bends on one piece of pipe
         detailed drawing if possible

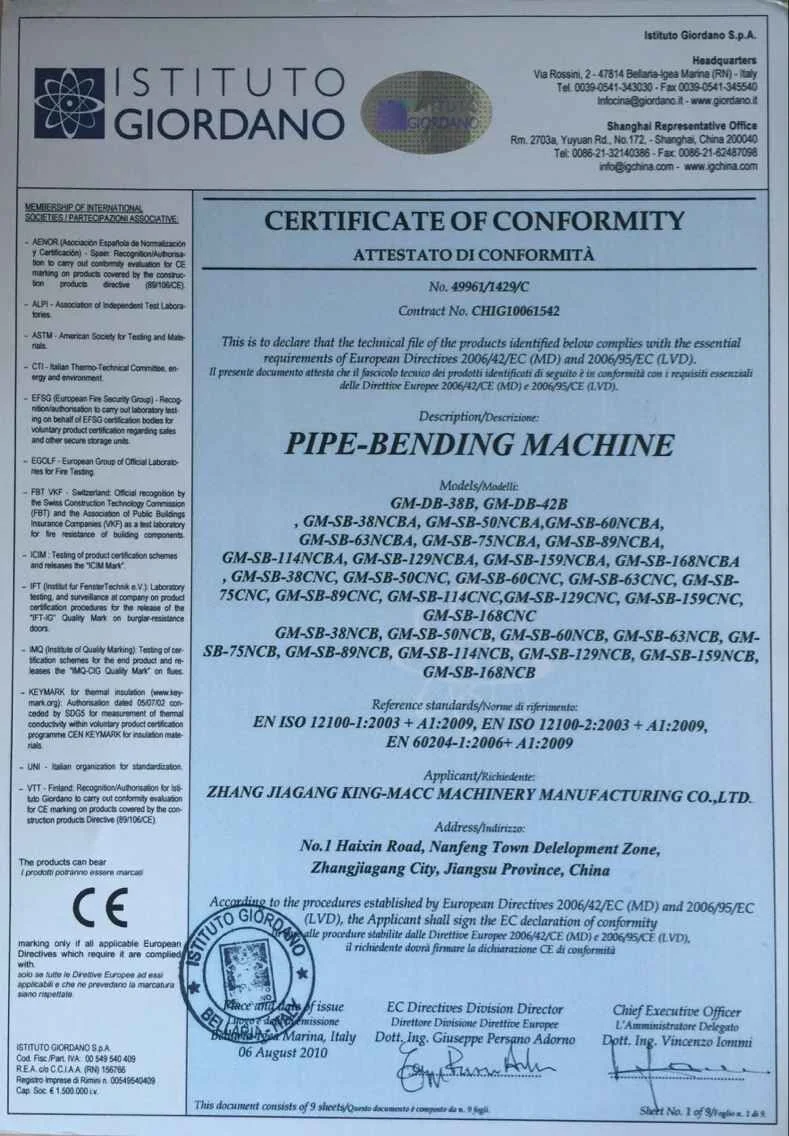

4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.

5. Q:How about your service?
    A: Before Sales Serive:
         1. We will help our customer confirm the right machine model according to the offered pipe inforamtion.
        2. Welcome to visit our factory to see our machine and our workshop before you place an order.

     B: After Sales Service:
     1. We provide manual book,detailed machine installation,commissioning video to help you correctly operate machine.If you need our engineer to go to your factory for machine installation, air tickets,food,hotel,local transportation should be at your
account.
    2. If Any problems on machine,our engineer will solve for you through computer first,most problems can be solved by changing parts,if can't,our engineer can go to your factory to solve for you, we have experienced engineers for abroad market.
       For mechanical parts, which were made by ourselves,we have plenty in our stock,if you need,we can send to you by courier at once.
       For electronic parts, we all use famous brand, which you can buy it easily at your side.
